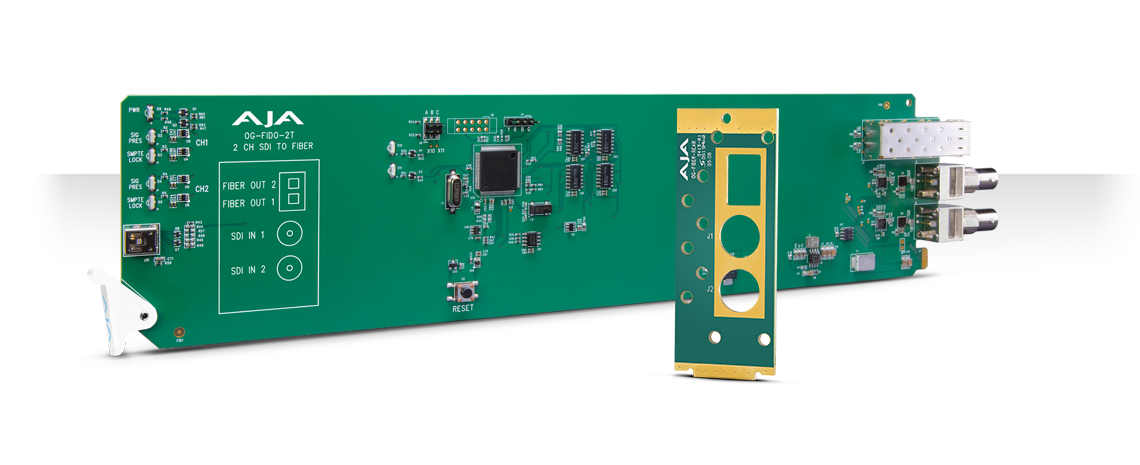

AJA OG-FiDO-2T-X openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter for CWDM with DashBoard Support
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 2x 3G-SDI BNC
- Outputs: 2x CWDM LC Fiber
- Monitor via openGear DashBoard
The AJA OG-FiDO-2T-X openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter for CWDM with DashBoard Support is a state of the art, openGear compatible, 2-channel 3G-SDI to Fiber converter with CWDM SFP options, enabling 3G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two 3G-SDI inputs are completely independent allowing different 3G-SDI rates to be carried on each channel.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
Key Features
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 2x 3G-SDI BNC
- Outputs: 2x CWDM LC Fiber
- Monitor via openGear DashBoard
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Power: 2.5 watts
- Hot swap capable
- Compatible with OGX, OG3 and DFR-8321 openGear frames
Connectivity
The 3G-SDI inputs are reclocked with best in class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. The fiber connector is attached to the main card for added reliability and cost savings.
CWDM SFP Options
Each AJA CWDM transmitter supports two individual wavelengths, as shown in the chart below:
| Wavelength #1 | Wavelength #2 |
| 1271 nm | 1291 nm |
| 1311 nm | 1331 nm |
| 1351 nm | 1371 nm |
| 1391 nm | 1411 nm |
| 1431 nm | 1451 nm |
| 1471 nm | 1491 nm |
| 1511 nm | 1531 nm |
| 1551 nm | 1571 nm |
| 1591 nm | 1611 nm |
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
In the Box
AJA OG-FiDO-2T-X openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter for CWDM with DashBoard Support
| SKU | 107452 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brands | AJA | ||||||||||||||||||
| MPN | OG-FiDO-2T-X | ||||||||||||||||||
| Specifications |
|
